Radial Truck Tyre

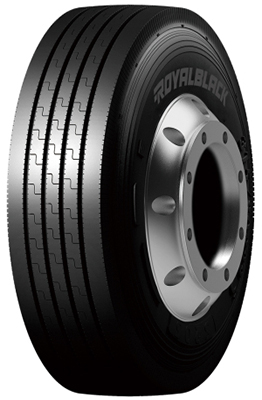

RS205
STEER COMMERCIAL TYRE
LONG HAUL APPLICATION ON HIGHWAY ROAD, GOOD ROAD CONDITION
PATTERN FEATURES:
-Three longitudinal pattern groove and transverse shallow groove to provide mainpulative performance.
-High strength cap design and tyre structure design improve blasting, ensure tyre safe driving.
-Excellent performance in low rolling resistance and fuel saving.
-With sipe tread design to generate a good low heating up performance.
SPECIFICATIONS AND PARAMETERS:
|
SIZE |
P.R |
RIM |
LOAD INDEX |
SPEED CODE |
MAX LOAD (Single/Dual) |
PRESSURE (KPA/PSI) |
SECTION WIDTH (mm) |
OVERALL DIAMETER (mm) |
TREAD DEPTH (mm) |
|
11R22.5 |
16 |
8.25 |
148/145 |
M |
3150/2900 |
850/120 |
279 |
1054 |
13.0 |
|
11R24.5 |
16 |
8.25 |
149/146 |
M |
3250/3000 |
830/120 |
279 |
1104 |
11.0 |
|
12R22.5 |
18 |
9.00 |
152/149 |
M |
3550/3250 |
930/135 |
300 |
1085 |
14.5 |
|
295/80R22.5 |
18 |
9.00 |
152/149 |
M |
3550/3250 |
900/131 |
298 |
1044 |
14.5 |
|
295/75R22.5 |
16 |
9.00 |
146/143 |
M |
3000/2725 |
830/120 |
298 |
1014 |
11.0 |
|
315/80R22.5 |
20 |
9.00 |
156/150 |
M |
4000/3350 |
850/123 |
312 |
1076 |
14.5 |
|
285/75R24.5 |
16 |
8.25 |
147/144 |
M |
3075/2800 |
830/120 |
283 |
1050 |
11.0 |
MAKE THE DRIVING SAFE AND COMFORTABLE WITH ROYAL BLACK TYRE
TYRE MAINTAINCE
AIR PRESSURE
Tyres should be inflated according to current national standards stipulated in the form of air pressure & loading index. After inflation tyre should be checked carefully for leak or not. If leak found shall be repaired in time.
LOADING
Tyres loads must comply with current national standards. DO NOT overloading. Loading goods in vehicles should be distributed evenly to avoid uneven load. High ply level and high tyres load index not suitable high speed driving.
SPEED
Different limits of speed levels with all kinds of tyres, speeding may cause early tyre damage. Do NOT speeding, minimize urgent braking and sharp turns in bad road, avoiding of the tyres hitting other objects.
